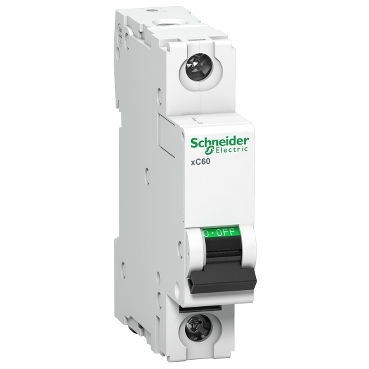

miniature circuit breaker – xC60 – 1 pole – 32 A – B curve

A9N1P32B

Category:

Description

Main
Device application Distribution
Range of product Acti9
Range Acti9
Product name XC60
product or component type Miniature circuit-breaker
Device short name xC60
Poles description 1P
Number of protected poles 1
[In] rated current 32 A
Network type AC
DC
Trip unit technology Thermal-magnetic
Curve code B
Utilisation category Category A conforming to EN/IEC 60947-2
Suitability for isolation Yes conforming to EN/IEC 60947-2
Complementary
Network frequency 50/60 Hz
[Ue] rated operational voltage 220…240 V AC 50/60 Hz
12…48 V DC
60 V DC
Magnetic tripping limit 4 x In +/- 20 %
Breaking capacity 10000 A Icn at 240 V AC 50/60 Hz conforming to EN/IEC 60898-1
15 kA Icu at 220…240 V AC 50/60 Hz conforming to EN/IEC 60947-2
15 kA Icu at 12…48 V DC conforming to EN/IEC 60947-2
6 kA Icu at 60 V DC conforming to EN/IEC 60947-2
[Ics] rated service breaking capacity 15 kA conforming to EN/IEC 60947-2 – 12…48 V DC
6 kA conforming to EN/IEC 60947-2 – 60 V DC
7.5 kA conforming to EN/IEC 60947-2 – 220…240 V AC 50/60 Hz
Limitation class 3 conforming to EN/IEC 60898-1
3 conforming to EN/IEC 60947-2
[Ui] rated insulation voltage 500 V AC 50/60 Hz conforming to EN/IEC 60947-2
[Uimp] rated impulse withstand voltage 6 kV conforming to EN/IEC 60947-2
Contact position indicator Yes
Control type Toggle
Local signalling ON/OFF indication
Mounting mode Clip-on
Mounting support 35 mm DIN rail
Comb busbar and distribution block compatibility Top: YES
9 mm pitches 2
Height 85 mm
Width 18 mm
Depth 77.5 mm
net weight 0.115 kg
Colour White
Mechanical durability 20000 cycles
Electrical durability 10000 cycles
Connections – terminals Biconnect (top)
Tunnel type terminals (bottom) 25 mm² flexible
Tunnel type terminals (bottom) 35 mm² rigid
Wire stripping length 13 mm for top or bottom connection
Tightening torque 3.5 N.m
earth-leakage protection Separate block
Product compatibility C60 accessories
C60 auxiliary
Environment
Standards EN/IEC 60898-1
EN/IEC 60947-2
IP degree of protection IP20 conforming to IEC 60529
Pollution degree 3
Tropicalisation 2 conforming to IEC 60068-1
Relative humidity 95 % at 55 °C
Ambient air temperature for operation -30…70 °C
ambient air temperature for storage -40…85 °C
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 7 cm
Package 1 Width 2 cm
Package 1 Length 8 cm
Package 1 Weight 0.126 kg
