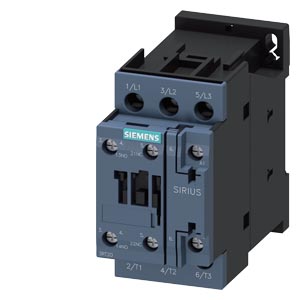

| size of contactor |
S0 |
| product extension |
|
| ● function module for communication |
No |
| ● auxiliary switch |
Yes |
| power loss [W] for rated value of the current |
|
| ● at AC in hot operating state |
0.9 W |
| ● at AC in hot operating state per pole |
0.3 W |
| ● without load current share typical |
7.9 W |
| insulation voltage |
|
| ● of main circuit with degree of pollution 3 rated value |
690 V |
| ● of auxiliary circuit with degree of pollution 3 rated value |
690 V |
| surge voltage resistance |
|
| ● of main circuit rated value |
6 kV |
| ● of auxiliary circuit rated value |
6 kV |
| maximum permissible voltage for protective separation between coil and main contacts according to EN 60947-1 |
400 V |
| protection class IP |
|
| ● on the front |
IP20; IP20 |
| ● of the terminal |
IP20 |
| shock resistance at rectangular impulse |
|
| ● at AC |
7,5g / 5 ms, 4,7g / 10 ms |
| shock resistance with sine pulse |
|
| ● at AC |
11,8g / 5 ms, 7,4g / 10 ms |
| mechanical service life (operating cycles) |
|
| ● of contactor typical |
10 000 000 |
| ● of the contactor with added electronically optimized auxiliary switch block typical |
5 000 000 |
| ● of the contactor with added auxiliary switch block typical |
10 000 000 |
| reference code according to IEC 81346-2 |
Q |
| Substance Prohibitance (Date) |
09/01/2022 |
| Ambient conditions |
| installation altitude at height above sea level maximum |
2 000 m |
| ambient temperature |
|
| ● during operation |
-5 … +60 °C |
| ● during storage |
-25 … +80 °C |
| relative humidity minimum |
10 % |
| relative humidity at 55 °C according to IEC 60068-2-30 maximum |
95 % |
| Main circuit |
| number of poles for main current circuit |
3 |
| number of NO contacts for main contacts |
3 |
| operating voltage |
|
| ● at AC-3 rated value maximum |
690 V |
| ● at AC-3e rated value maximum |
690 V |
| operational current |
|
| ● at AC-1 at 400 V at ambient temperature 40 °C rated value |
40 A |
| ● at AC-1 up to 690 V |
|
| — at ambient temperature 40 °C rated value |
40 A |
| — at ambient temperature 60 °C rated value |
35 A |
| ● at AC-3 |
|
| — at 400 V rated value |
12 A |
| — at 500 V rated value |
12 A |
| — at 690 V rated value |
9 A |
| ● at AC-3e |
|
| — at 400 V rated value |
12 A |
| — at 500 V rated value |
12 A |
| — at 690 V rated value |
9 A |
| ● at AC-4 at 400 V rated value |
12.5 A |
| ● at AC-5a up to 690 V rated value |
35.2 A |
| ● at AC-5b up to 400 V rated value |
9.9 A |
| ● at AC-6a |
|
| — up to 230 V for current peak value n=20 rated value |
11.4 A |
| — up to 400 V for current peak value n=20 rated value |
11.4 A |
| — up to 500 V for current peak value n=20 rated value |
11.3 A |
| — up to 690 V for current peak value n=20 rated value |
9 A |
| ● at AC-6a |
|
| — up to 230 V for current peak value n=30 rated value |
7.6 A |
| — up to 400 V for current peak value n=30 rated value |
7.6 A |
| — up to 500 V for current peak value n=30 rated value |
7.6 A |
| — up to 690 V for current peak value n=30 rated value |
7.6 A |
| minimum cross-section in main circuit at maximum AC-1 rated value |
10 mm² |
| operational current for approx. 200000 operating cycles at AC-4 |
|
| ● at 400 V rated value |
5.5 A |
| ● at 690 V rated value |
5.5 A |
| operational current |
|
| ● at 1 current path at DC-1 |
|
| — at 24 V rated value |
35 A |
| — at 110 V rated value |
4.5 A |
| — at 220 V rated value |
1 A |
| — at 440 V rated value |
0.4 A |
| — at 600 V rated value |
0.25 A |
| ● with 2 current paths in series at DC-1 |
|
| — at 24 V rated value |
35 A |
| — at 110 V rated value |
35 A |
| — at 220 V rated value |
5 A |
| — at 440 V rated value |
1 A |
| — at 600 V rated value |
0.8 A |
| ● with 3 current paths in series at DC-1 |
|
| — at 24 V rated value |
35 A |
| — at 110 V rated value |
35 A |
| — at 220 V rated value |
35 A |
| — at 440 V rated value |
2.9 A |
| — at 600 V rated value |
1.4 A |
| ● at 1 current path at DC-3 at DC-5 |
|
| — at 24 V rated value |
20 A |
| — at 110 V rated value |
2.5 A |
| — at 220 V rated value |
1 A |
| — at 440 V rated value |
0.09 A |
| — at 600 V rated value |
0.06 A |
| ● with 2 current paths in series at DC-3 at DC-5 |
|
| — at 24 V rated value |
35 A |
| — at 110 V rated value |
15 A |
| — at 220 V rated value |
3 A |
| — at 440 V rated value |
0.27 A |
| — at 600 V rated value |
0.16 A |
| ● with 3 current paths in series at DC-3 at DC-5 |
|
| — at 24 V rated value |
35 A |
| — at 110 V rated value |
35 A |
| — at 220 V rated value |
10 A |
| — at 440 V rated value |
0.6 A |
| — at 600 V rated value |
0.6 A |
| operating power |
|
| ● at AC-1 |
|
| — at 230 V rated value |
13.3 kW |
| — at 230 V at 60 °C rated value |
13.3 kW |
| — at 400 V rated value |
23 kW |
| — at 400 V at 60 °C rated value |
23 kW |
| — at 690 V rated value |
40 kW |
| — at 690 V at 60 °C rated value |
40 kW |
| ● at AC-2 at 400 V rated value |
5.5 kW |
| ● at AC-3 |
|
| — at 230 V rated value |
3 kW |
| — at 400 V rated value |
5.5 kW |
| — at 500 V rated value |
5.5 kW |
| — at 690 V rated value |
7.5 kW |
| ● at AC-3e |
|
| — at 230 V rated value |
3 kW |
| — at 400 V rated value |
5.5 kW |
| — at 500 V rated value |
5.5 kW |
| — at 690 V rated value |
7.5 kW |
| ● at AC-4 at 400 V rated value |
5.5 kW |
| operating power for approx. 200000 operating cycles at AC-4 |
|
| ● at 400 V rated value |
26 kW |
| ● at 690 V rated value |
4.6 kW |
| operating apparent power at AC-6a |
|
| ● up to 230 V for current peak value n=20 rated value |
4.5 kVA |
| ● up to 400 V for current peak value n=20 rated value |
7.8 kVA |
| ● up to 500 V for current peak value n=20 rated value |
9.8 kVA |
| ● up to 690 V for current peak value n=20 rated value |
10.7 kVA |
| operating apparent power at AC-6a |
|
| ● up to 230 V for current peak value n=30 rated value |
3 VA |
| ● up to 400 V for current peak value n=30 rated value |
5.2 VA |
| ● up to 500 V for current peak value n=30 rated value |
6.5 VA |
| ● up to 690 V for current peak value n=30 rated value |
9 VA |
| short-time withstand current in cold operating state up to 40 °C |
|
| ● limited to 1 s switching at zero current maximum |
210 A; Use minimum cross-section acc. to AC-1 rated value |
| ● limited to 5 s switching at zero current maximum |
210 A; Use minimum cross-section acc. to AC-1 rated value |
| ● limited to 10 s switching at zero current maximum |
162 A; Use minimum cross-section acc. to AC-1 rated value |
| ● limited to 30 s switching at zero current maximum |
103 A; Use minimum cross-section acc. to AC-1 rated value |
| ● limited to 60 s switching at zero current maximum |
88 A; Use minimum cross-section acc. to AC-1 rated value |
| no-load switching frequency |
|
| ● at AC |
5 000 1/h |
| operating frequency |
|
| ● at AC-1 maximum |
1 000 1/h |
| ● at AC-2 maximum |
1 000 1/h |
| ● at AC-3 maximum |
1 000 1/h |
| ● at AC-3e maximum |
1 000 1/h |
| ● at AC-4 maximum |
300 1/h |
| Control circuit/ Control |
| type of voltage of the control supply voltage |
AC |
| control supply voltage at AC |
|
| ● at 50 Hz rated value |
230 V |
| ● at 60 Hz rated value |
230 V |
| operating range factor control supply voltage rated value of magnet coil at AC |
|
| ● at 50 Hz |
0.8 … 1.1 |
| ● at 60 Hz |
0.85 … 1.1 |
| apparent pick-up power of magnet coil at AC |
|
| ● at 50 Hz |
68 VA |
| ● at 60 Hz |
67 VA |
| inductive power factor with closing power of the coil |
|
| ● at 50 Hz |
0.72 |
| ● at 60 Hz |
0.74 |
| apparent holding power of magnet coil at AC |
|
| ● at 50 Hz |
7.9 VA |
| ● at 60 Hz |
6.5 VA |
| inductive power factor with the holding power of the coil |
|
| ● at 50 Hz |
0.25 |
| ● at 60 Hz |
0.28 |
| closing delay |
|
| ● at AC |
8 … 40 ms |
| opening delay |
|
| ● at AC |
4 … 16 ms |
| arcing time |
10 … 10 ms |
| control version of the switch operating mechanism |
Standard A1 – A2 |
| Auxiliary circuit |
| number of NC contacts for auxiliary contacts instantaneous contact |
1 |
| number of NO contacts for auxiliary contacts instantaneous contact |
1 |
| operational current at AC-12 maximum |
10 A |
| operational current at AC-15 |
|
| ● at 230 V rated value |
10 A |
| ● at 400 V rated value |
3 A |
| ● at 500 V rated value |
2 A |
| ● at 690 V rated value |
1 A |
| operational current at DC-12 at 440 V rated value |
0.3 A |
| operational current at DC-12 |
|
| ● at 24 V rated value |
10 A |
| ● at 48 V rated value |
6 A |
| ● at 60 V rated value |
6 A |
| ● at 110 V rated value |
3 A |
| ● at 125 V rated value |
2 A |
| ● at 220 V rated value |
1 A |
| ● at 600 V rated value |
0.15 A |
| operational current at DC-13 |
|
| ● at 24 V rated value |
10 A |
| ● at 48 V rated value |
2 A |
| ● at 60 V rated value |
2 A |
| ● at 110 V rated value |
1 A |
| ● at 125 V rated value |
0.9 A |
| ● at 220 V rated value |
0.3 A |
| ● at 600 V rated value |
0.1 A |
| contact reliability of auxiliary contacts |
1 faulty switching per 100 million (17 V, 1 mA) |
| Short-circuit protection |
| design of the fuse link |
|
| ● for short-circuit protection of the main circuit |
|
| — with type of coordination 1 required |
gG: 63A (690V,50kA) |
| — with type of assignment 2 required |
gG: 25A (690V,50kA) |
| ● for short-circuit protection of the auxiliary switch required |
gG: 10 A (690 V, 1 kA) |
| Installation/ mounting/ dimensions |
| mounting position |
+/-180° rotation possible on vertical mounting surface; can be tilted forward and backward by +/- 22.5° on vertical mounting surface |
| fastening method |
screw and snap-on mounting onto 35 mm standard mounting rail according to DIN EN 60715 |
| height |
85 mm |
| width |
45 mm |
| depth |
97 mm |
| required spacing |
|
| ● with side-by-side mounting |
|
| — forwards |
10 mm |
| — upwards |
10 mm |
| — downwards |
10 mm |
| — at the side |
0 mm |
| ● for grounded parts |
|
| — forwards |
10 mm |
| — upwards |
10 mm |
| — at the side |
6 mm |
| — downwards |
10 mm |
| ● for live parts |
|
| — forwards |
10 mm |
| — upwards |
10 mm |
| — downwards |
10 mm |
| — at the side |
6 mm |
| Connections/ Terminals |
| type of electrical connection |
|
| ● for main current circuit |
screw-type terminals |
| ● for auxiliary and control circuit |
screw-type terminals |
| ● at contactor for auxiliary contacts |
Screw-type terminals |
| ● of magnet coil |
Screw-type terminals |
| type of connectable conductor cross-sections for main contacts |
|
| ● solid |
2x (1 … 2.5 mm²), 2x (2.5 … 10 mm²) |
| ● solid or stranded |
2x (1 … 2.5 mm²), 2x (2.5 … 10 mm²) |
| ● finely stranded with core end processing |
2x (1 … 2.5 mm²), 2x (2.5 … 6 mm²), 1x 10 mm² |
| connectable conductor cross-section for main contacts |
|
| ● solid |
1 … 1 mm² |
| ● solid or stranded |
1 … 10 mm² |
| ● stranded |
1 … 10 mm² |
| ● finely stranded with core end processing |
1 … 10 mm² |
| connectable conductor cross-section for auxiliary contacts |
|
| ● solid or stranded |
0.5 … 2.5 mm² |
| ● finely stranded with core end processing |
0.5 … 2.5 mm² |
| type of connectable conductor cross-sections |
|
| ● for auxiliary contacts |
|
| — solid or stranded |
2x (0.5 … 1.5 mm²), 2x (0.75 … 2.5 mm²) |
| — finely stranded with core end processing |
2x (0.5 … 1.5 mm²), 2x (0.75 … 2.5 mm²) |
| ● for AWG cables for auxiliary contacts |
2x (20 … 16), 2x (18 … 14) |
| AWG number as coded connectable conductor cross section |
|
| ● for main contacts |
16 … 8 |
| ● for auxiliary contacts |
20 … 14 |
| Safety related data |
| proportion of dangerous failures |
|
| ● with low demand rate according to SN 31920 |
40 % |
| ● with high demand rate according to SN 31920 |
73 % |
| B10 value with high demand rate according to SN 31920 |
450 000 |
| failure rate [FIT] with low demand rate according to SN 31920 |
100 FIT |
| IEC 61508 |
| T1 value for proof test interval or service life according to IEC 61508 |
10 a |
| Electrical Safety |
| protection class IP on the front according to IEC 60529 |
IP20 |
| touch protection on the front according to IEC 60529 |
finger-safe, for vertical contact from the front |
